System Type | 7-axis carbon fiber gyro stabilized head |
Head Weight | 64 lbs (29 kgs) |
| Head Dimensions | L: 23.5” W: 8” H: 29.5” (60 cm x 20 cmx 75 cm) |
Temperature | -20° to +50°C (-5° to 122°F) |
| Pan, Tilt and Roll Limits | 360° Continuous in all axes |
| Pan and Tilt Speed | Up to 240° / sec |
| Payload | Wide variety of camera and lens configurations. 75 lb payload plus |
CONSOLE MODES
- SpaceCam…mimicking SpaceCam operating conventions.
- SpaceCam 2….maintains absolute control polarity with image on the screen even when camera is inverted.
- Zedir Pan Mode…allowing straight up or down pan movements with system auto-leveling when horizon is about to enter frame.
- Hard Mode…unstabilized, locked totally to position of mounting (coming soon)
Sub Modes:
- Follow Mode…selectable individually for Pan, Tilt and Roll
- Roll Stick…selectable velocity and position control modes. In position mode, roll returns to position of origin when roll stick is released.
CONSOLE FEATURES
- Stick functions swappable for lefties
- Dynaglide wheel control unit. Various wheel inertias available upon request as well as optional variable drag system
- Optional pan bar (Cartoni E-Cube)
- Optional military style strain gauge hand-held joystick
- Controls can be individually tailored for all aspects of control response, polarity, smoothing, etc.
- Option for remote power on/off for cable rigs and cranes
- Wireless operation up to 1.5 miles (2.4 kms) with option of 10 miles (16 kms)
- Motion record and motion playback capability
- Control console magnetically attaches for swift change-ups
- Dedicated controls for 95% of common functions
- Console weight is 6.5 lbs (2.3 kgs)
- Sculpted foam magnetic lap console mount available
APPLICATIONS
Maximus 7 is the most versatile 7 axes gyro stabilized head on the market today. It’s ability to go from camera car to studio makes it the “go to” head for all your filming needs including:
- Telescopic Cranes
- Camera Cars
- Boats
- Studio
- Jib Arms
- Standard Cranes
- Dollies
- Cable Rigs
- Motorcycles
- ATV’s
- Motorized Arm Cars
- Helicopters
- R.T.V.L. (Real Time Video link)
- A new Video transmission system on a multy-channel device( from 2.400 Mhz to 5800 Mhz) can assure a good distance range of an analogic signal ( on an open sea situation can arrive up to 3 Km. with a 2 on 3 receiving signal) provided with directional antennas on the ground and omni directional antennas placed on different sides of the helicopter to cover any position needed for the shooting .

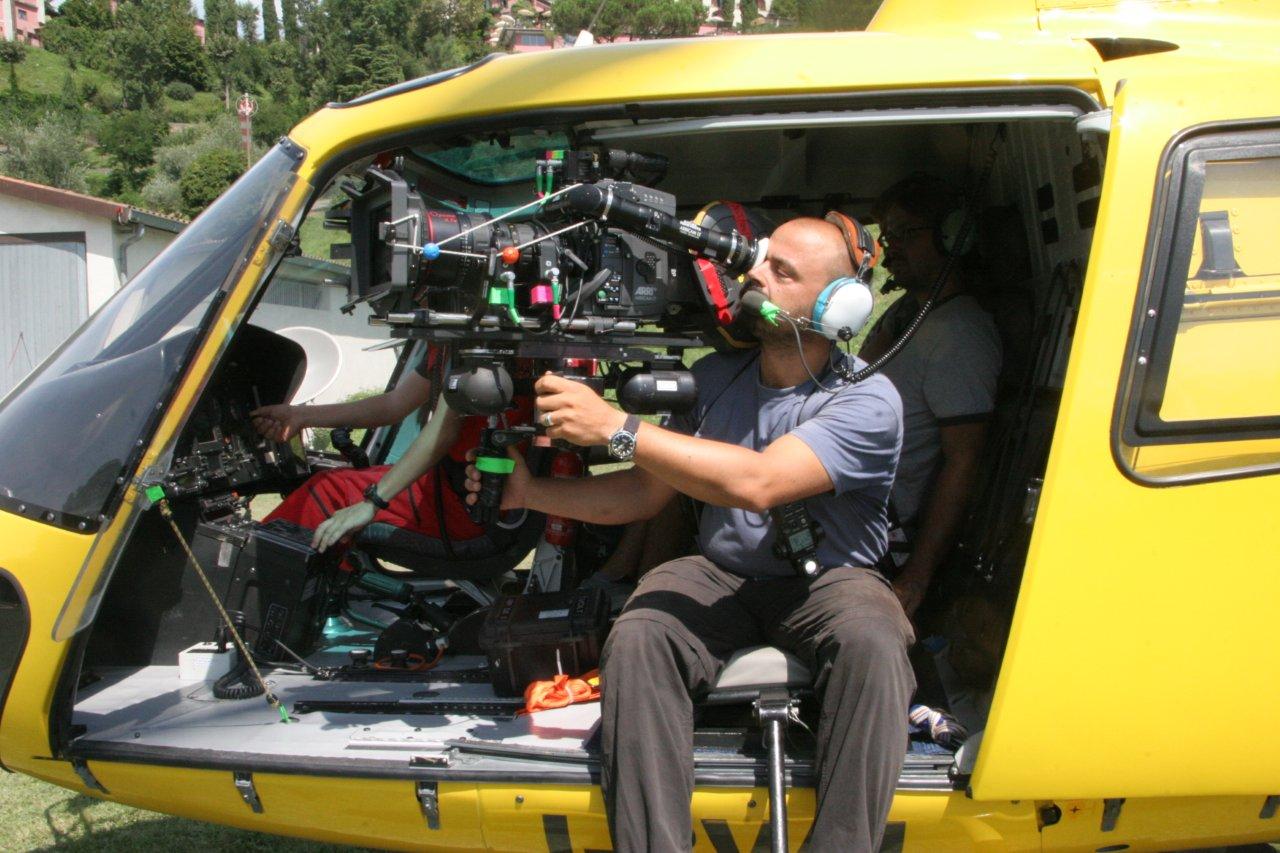

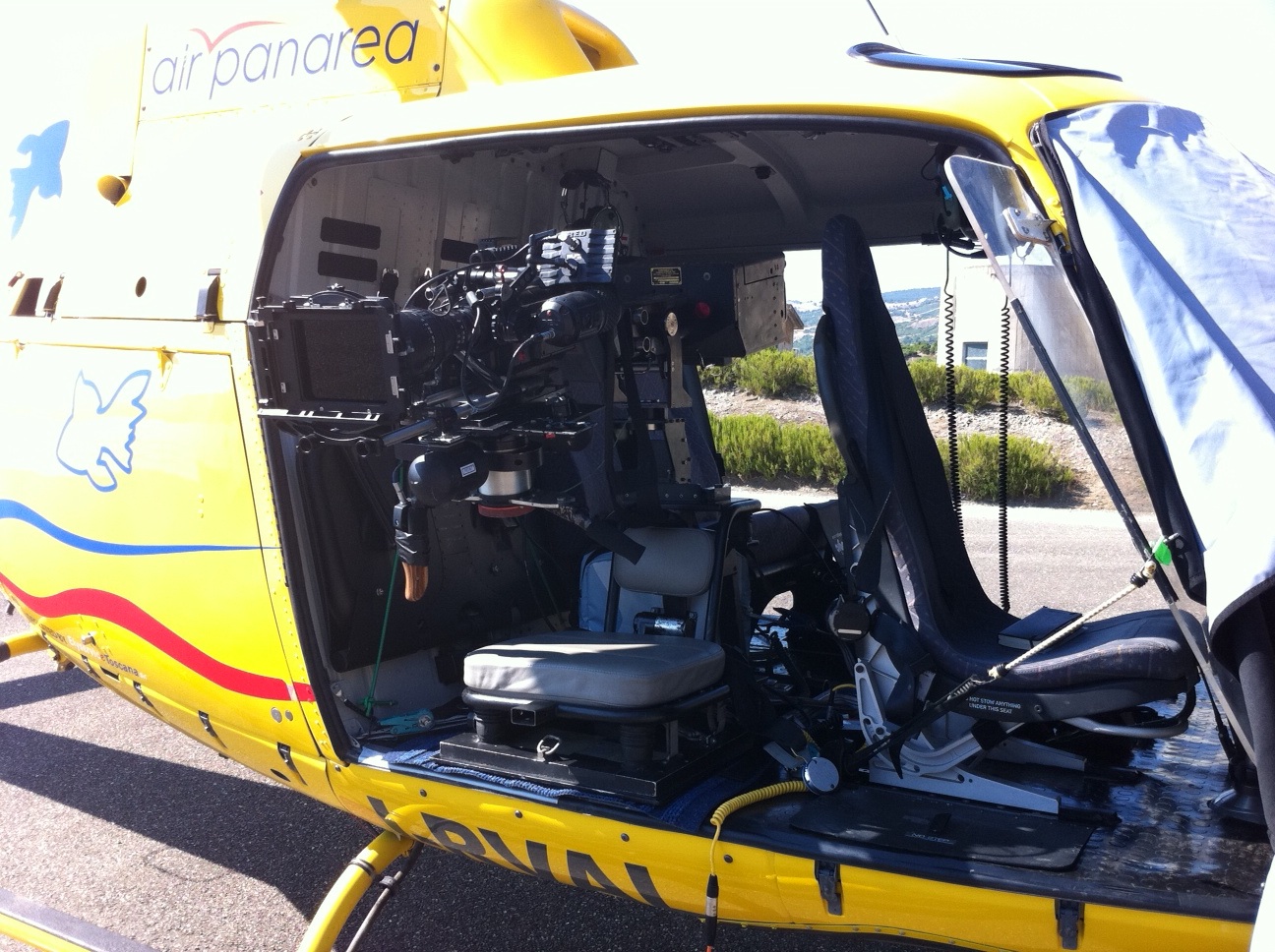

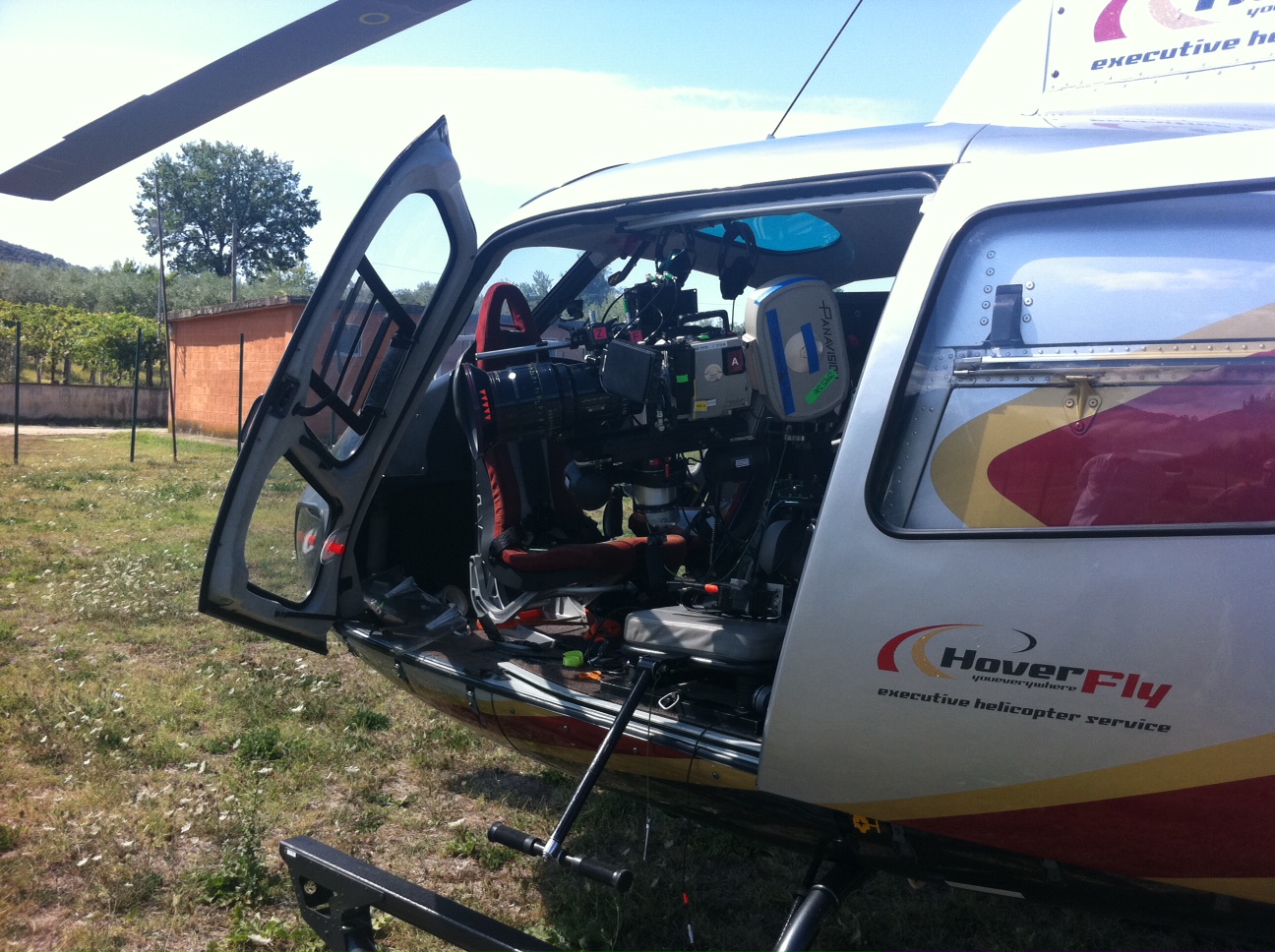

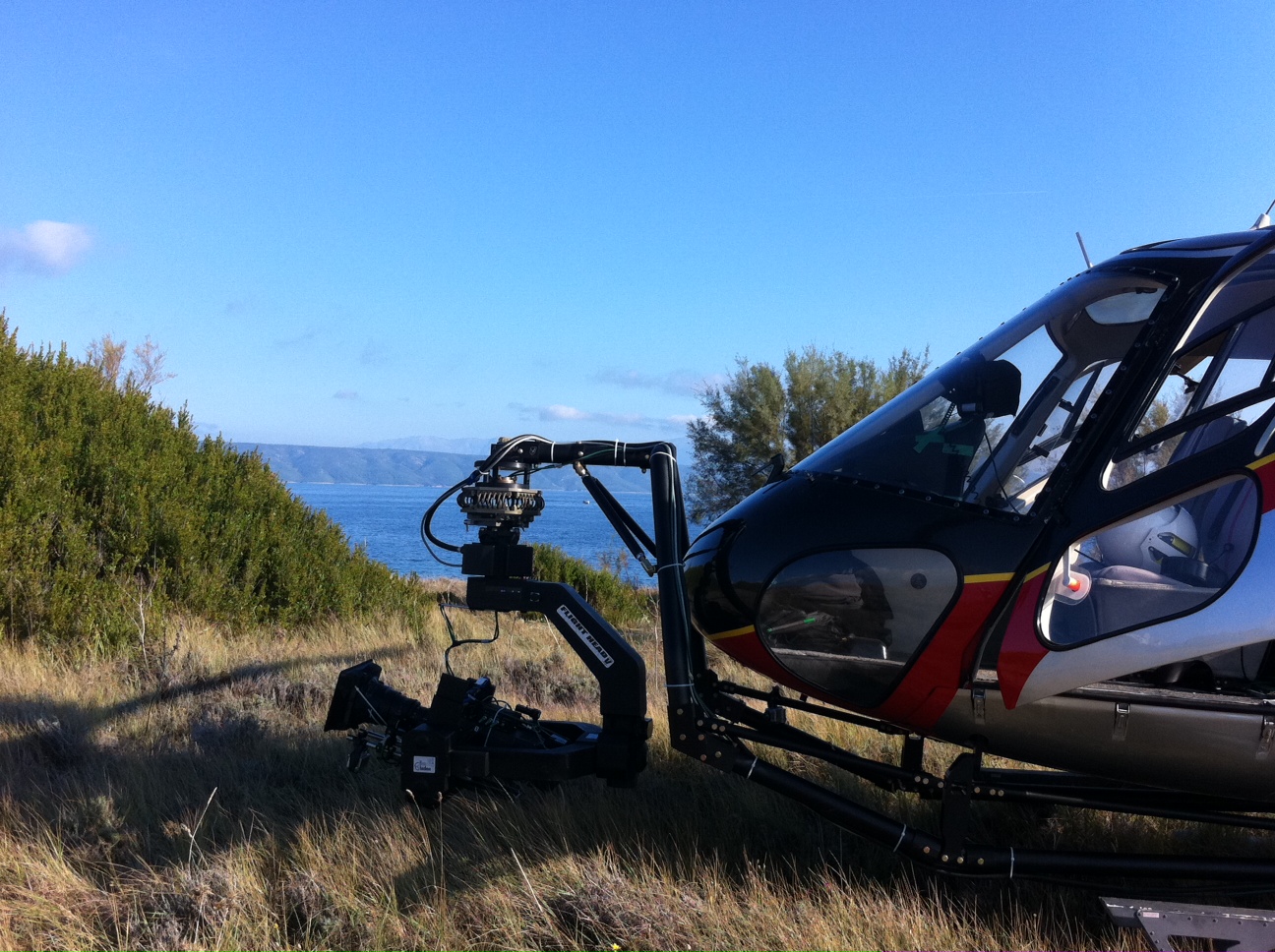

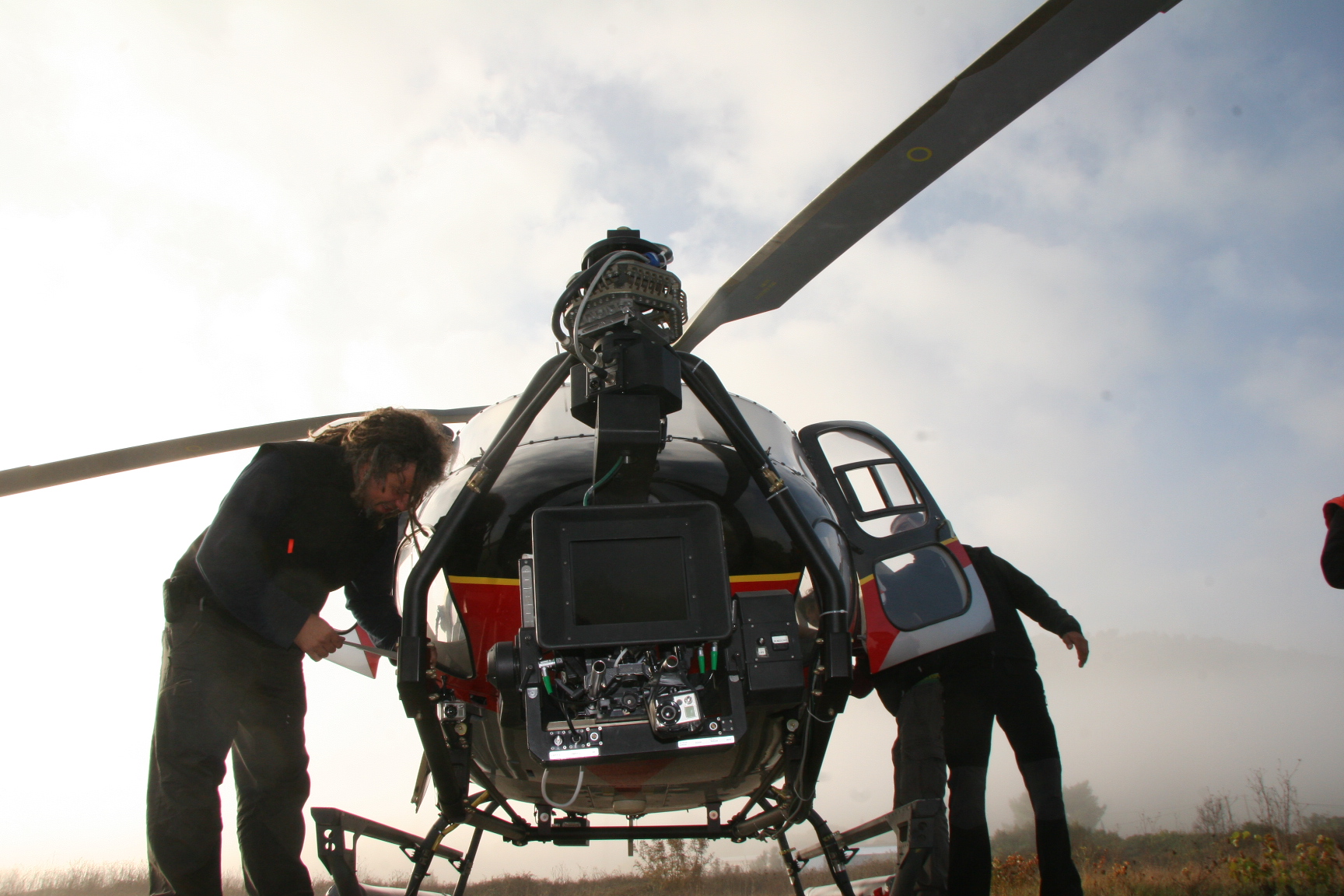

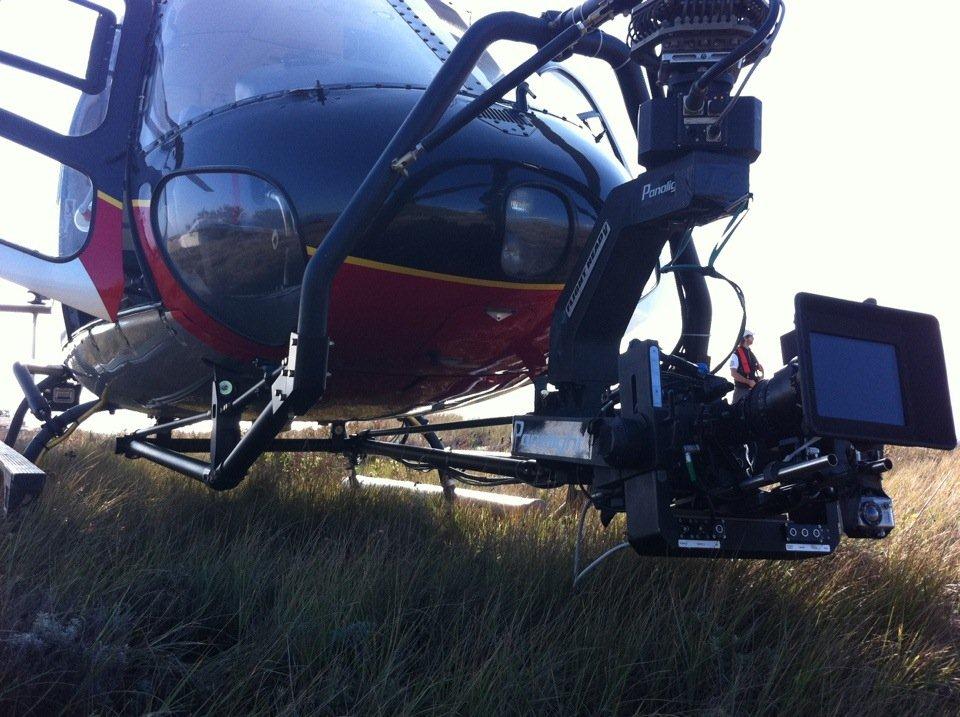

The Continental Mount can be mounted on both sides of the helicopter and allows, in case of use of traditional cameras to be able to change mags of film in flight without having to land . The working angle useful to shoot is 100 ° pan and 70 ° tilt of these angles can be expanded with special maneuvers the helicopter.
In fase di studio avanzato ma non ancora omologato si trova il progetto H360 capace di dare massima libertà di movimento alla MDP permettendo rotazioni di 360° e fornendo con un solo Mount la possibilità di effettuare frontali e posteriori di mezzi in movimento senza dover cambiare mount sull'elicottero.

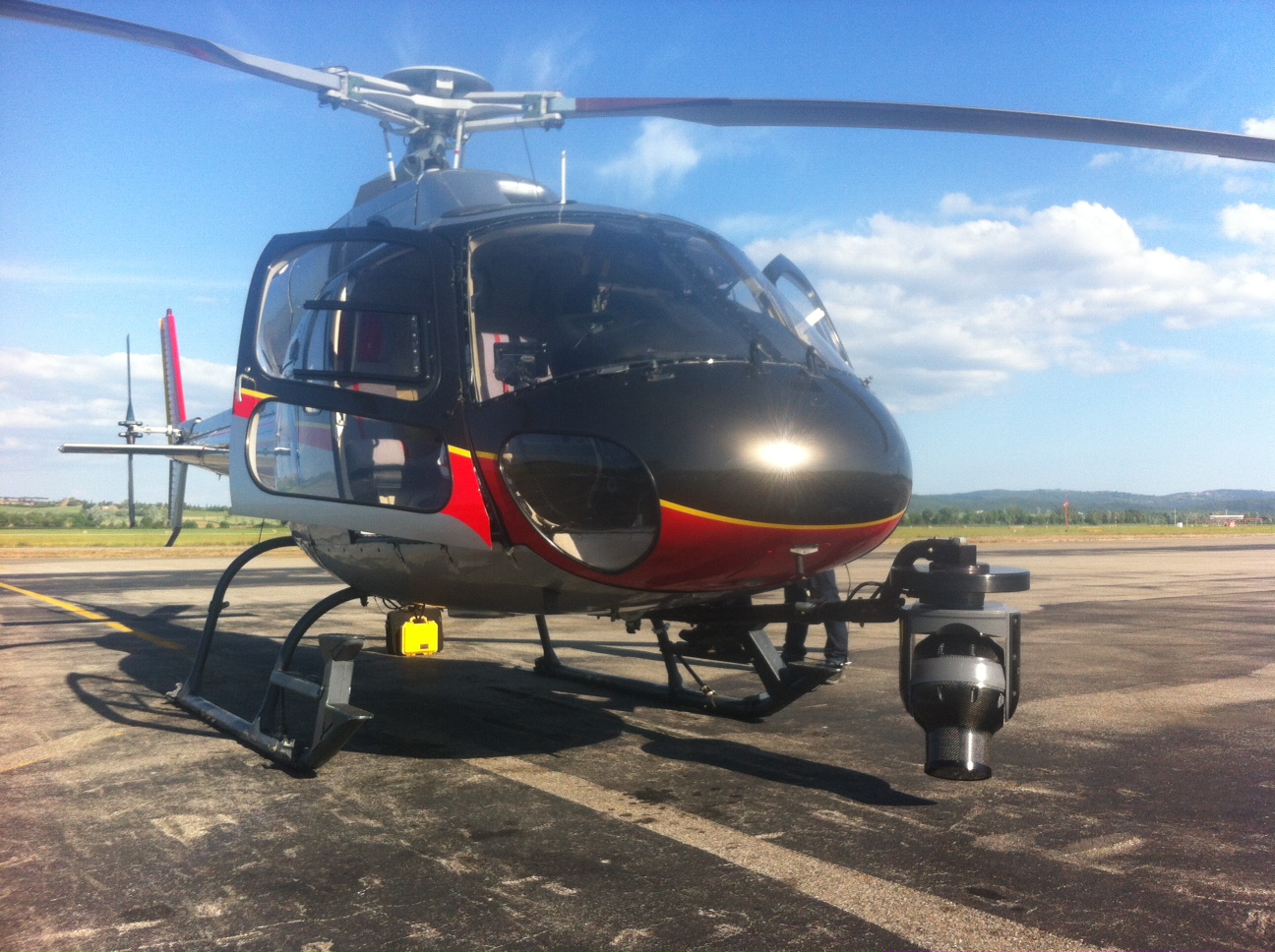

and Control System, High Performance/
Small/Lightweight
Field of Regard Automatic and Steerable
Azimuth Coverage 360° Continuous
Elevation Coverage +20° to -195°
Roll Coverage +/- 45°
Slew Rate >55°/sec
Maximum Slew 100°/sec
2
Acceleration
Position Resolution .001°
Electronics High Speed 32bit DSP
Communication Links Bi-directional RS422 and RS232
Operating Temperature -20° to +45° C
HD Daylight Imager
Camera Sony HDC-1500
Imaging Device 3-CCD 2/3˝
Effective Pixels 1920(H) x 1080(V)
Aspect Ratio 16:9
Frame Rates 1080/60p-50p-30p, 1080/60i-50i, 1080/24p-25p,
720/60p-50p
Spectrum System F1.4 prism system
Built In Filters 1: Clear, 2: 1/4ND, 3:1/8ND, 4:1/16ND, 5:1/64ND
A: Cross, B: 3200K, C: 4300K, D: 6300K, E:8000K
Servo Filter Control Yes
Sensitivity F10 at 2000 lx (3200k, 89.9% reflectance)
Signal-To-Noise Ratio 54dB (typical)
Horizontal 1000 TV lines
Dimensions
Item Weight Dimensions
Turret (dependent on lens) 65-68 lbs. 14.5˝ x 19.5˝ x 19.5˝
Auxiliary Control Unit 27 lbs. 14˝ x 19˝ x 6˝
Laptop Control Unit 5 lbs. 17˝ x 8.75˝ x 1.8˝
Cable Set 9 lbs. (20´ length)
380 Crown Point Circle
|
+
Grass Valley, CA 95945
Specifications are subject to change. International sales are subject to ITAR restrictions. Memory Stick
V14 HD
is a registered trademark of the Thales Group.
Gyro-Stabilized HD
Power
Input Voltage 28 Vdc ± 10%
Power – Quiescent 85 Watts
Power – Continuous 170 Watts
Power – Transient 230 Watts
Main Control Unit
Interface Digital serial (RS-422)
Incorporated Camera Accessories
Sony HKC-T1500 CCD Block Extension Adaptor
Sony RM-B750 LCD touch-panel screen, direct
push buttons plus Memory
Stick
media card slot to recall
setup parameters
™
Lens Options
The camera system can be adapted for multiple lens
configurations upon request.
Angènieux
40 x 11 AIF-HR (11mm to 880mm optical,
1760mm digital)
Angènieux
™
40 x 22 AIF-HR (22mm to 1760mm optical,
3520mm digital)
Fujinon
™
™
HA 42 x 13.5 (13.5mm to 1134mm optical,
2268mm digital)
Fujinon
HA 42 x 9.7 (9.7mm to 815mm optical,
1630mm digital)
Fujinon
™
HA 22 x 7.8 (7.8mm to 343mm optical,
686mm digital)
Fujinon
™
HA 13 x 4.5 (4.5mm to 117mm optical,
